FREEGLIDE JAM PROOF INLINE POWDER SAMPLER
QAQC LAB INLINE SAMPLING DEVICES
MATERIALS OF CONSTRUCTION
Contact parts: - 316 stainless steel
- PTFE
- Silicone rubber, Viton or EPDM
- Other materials on request
Non contact parts: - 304 grade stainless steel
- Other materials as required.
FREEGLIDE JAM PROOF SAMPLERS

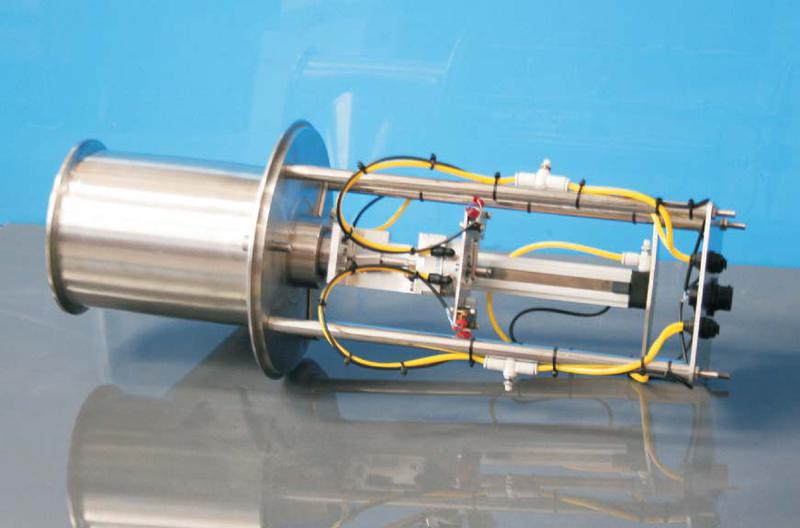

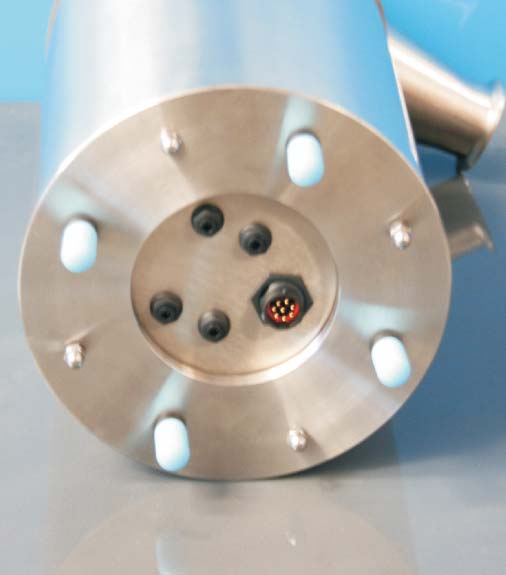

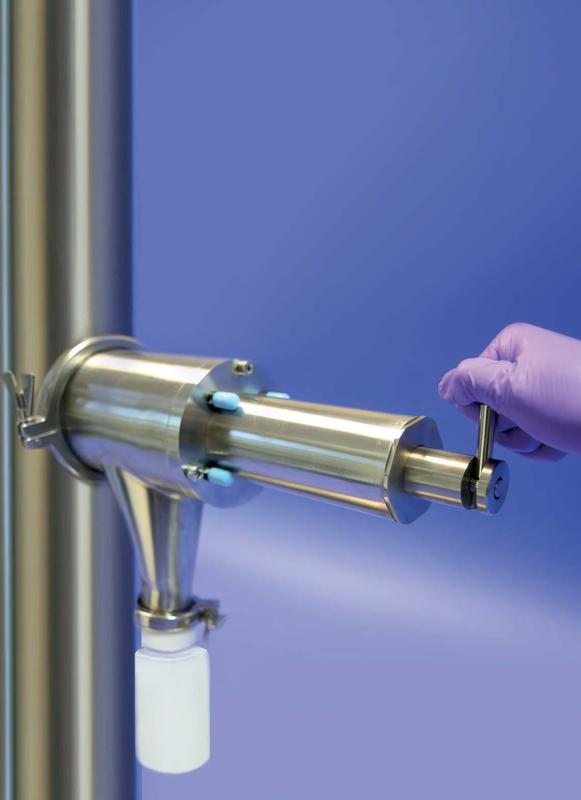

AUTOMATIC / PNEUMATIC OR MANUAL

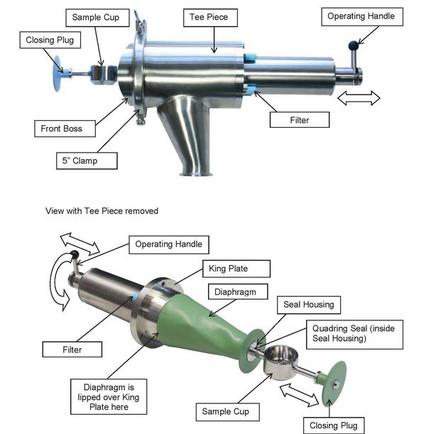

The FreegIide Inline Samplers are specially designed and engineered so that powder is kept out of the bearings by a special flexible membrane.
This means the sampler will not jam.

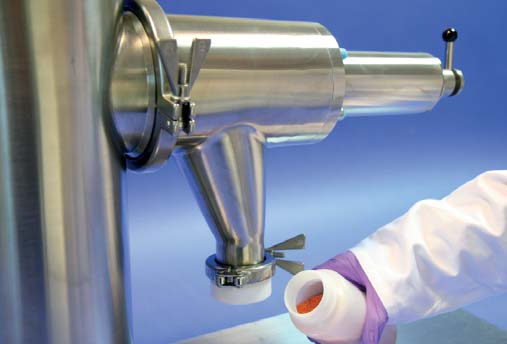

The sample is collected in a cup and so is not physically altered by the sampling process. When the sampling cup is retracted the full bore of the down pipe is available for powder flow. Made from FDA acceptable materials and easy to strip down for cleaning
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
"The general consensus is that only sampling from a bulk powder while it is in motion can yield the desired representative sample."
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.

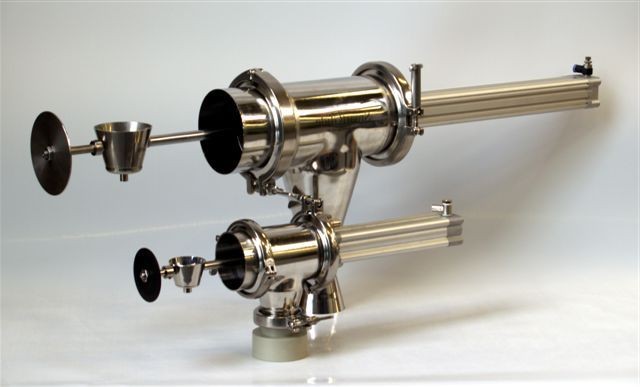

SMARTGLIDE INLINE SAMPLERS
AUTOMATIC / PNEUMATIC OR MANUAL
The SmartGlide is specially developed for sampling dusts, powders and granulates in downpipes.
The sampler is used for freeflowing solids with particle sizes between 1 nm and 10 mm, and is characterized by its
uncomplicated installation and reliable functionality.
The samples are representative and reproducible. In the
pneumatic version and with appropriate control, time-, volume- or event-proportional
sampling can be realized.
Only suitable for free-flowing, free-flowing bulk
materials with grain sizes between 1 nm and 10 mm.
Operation

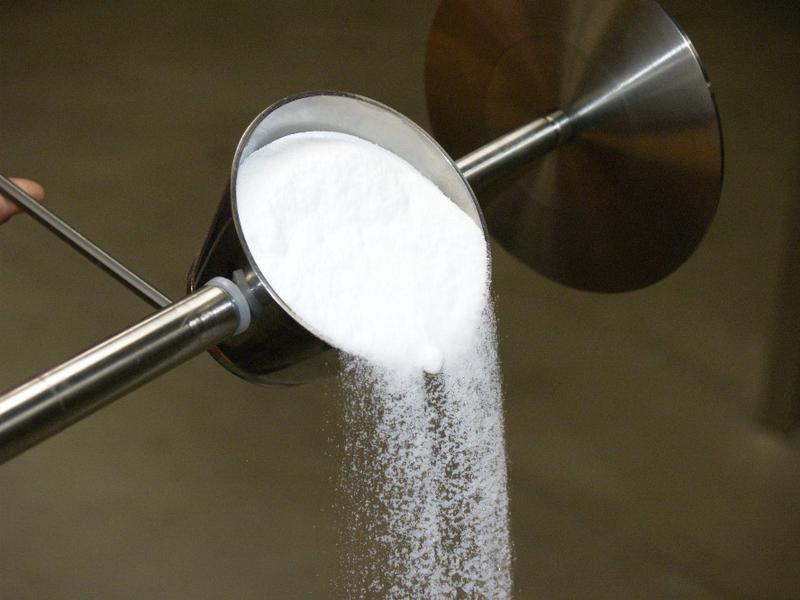

A cup attached to a piston rod is led into the
falling stream for sampling and filled with the
sample. During or after withdrawal into the
sampler housing, the cup is tilted and the
sample falls out of the ejection nozzle
The supplied TC flange DN80 or DN125 is
welded into the wall of the pipe or chute
according. The sampler is attached to it with a

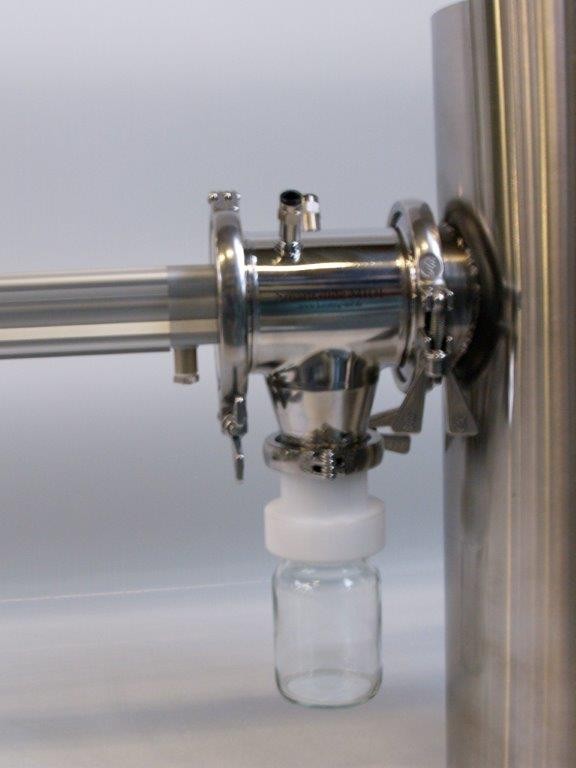

triclamp. Optionally, a sample collection system
(bottle adaptor or bag holder) is connected to the outlet.
