INLINE POWDER SAMPLER
MANUAL OPERATION

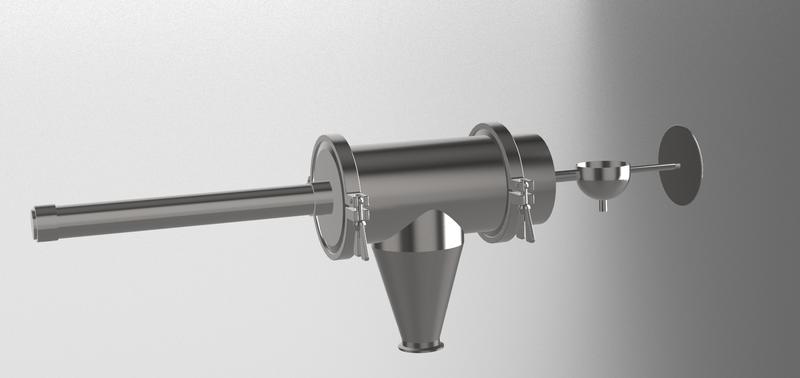

Freeglide POWDER SAMPLER INLINE Manually Operated
GMP SAMPLING INLINE POWDER SAMPLER
The SmartGlide is specially developed for sampling dusts, powders and granulates in down pipes.
The sampler is used for free flowing solids with particle sizes between 1 nm and 10 mm, and is
characterized by its uncomplicated installation and reliable functionality.
The samples are representative and reproducible. In the pneumatic version and with appropriate control, time-, volume- or event-proportional sampling can be realized.
Only suitable for free-flowing, free-flowing bulk materials with grain sizes between 1 nm and 10 mm.
WHITESTONE VA
TEL (804) 318-3686 FAX (703) 991-7133
INFORMATION@QCLABEQUIPMENT.COM
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
EQUIPMENT FOR QUALITY CONTROL AND R&D
Telephone (804) 318-3686
Toll Free US (866) 244 1578
Fax (703) 991-7133
Hours 8 AM - 6 PM EST
INTERNATIONAL & DOMESTIC SALES
CUSTOMER SERVICE * SALES * TECHNICAL SUPPORT
DELIVERIES WORLDWIDE
PERFORMANCE GUARANTEE
MANUFACTURING
DISTRIBUTION
TECHNICAL SERVICES FOR
ANALYTICAL INSTRUMENTATION
TELEPHONE (804) 318-3686
TOLL FREE (866) 244-1578
COMPLETE INTERACTIVE SAMPLER CATALOGUE
PDF DOWNLOAD
Models
SmartGlide 200
SmartGlide 250
SmartGlide 300
SmartGlide -Manual 200 *
SmartGlide -Manual 250 *
SmartGlide -Manual 300 *
SmartGlide-Midi 100
SmartGlide-Midi 150
SmartGlide-Midi 200
SmartGlide-Midi Manual 100
SmartGlide-Midi Manual 150
SmartGlide-Midi Manual 200
Options
• Sample collection systems
• Control boxes, programmable
• CIP nozzles
• Shut-off valve for pressure or vacuum applications
• Upgrade for use in ATEX areas
Actuation
Pneumatic
Pneumatic
Pneumatic
Manual
Manual
Manual
Pneumatic
Pneumatic
Pneumatic
Manual
Manual
Manual
Cup Size
150 ml
150 ml
150 ml
150 ml
150 ml
150 ml
50 ml
50 ml
50 ml
50 ml
50 ml
50 ml
Pipe Diameter
200 mm
250 mm
300 mm
200 mm
250 mm
300 mm
100 mm
150 mm
200 mm
100 mm
150 mm
200 mm
Features:
The properties of the sampled product are not altered due to the gentle withdrawal.
Easy operation and control
High-quality materials (stainless steel AISI 316, EPDM or silicone seals, HPU) are all
FDA acceptable
Quick and easy disassembly for cleaning and maintenance
Due to the dead space-free design and the special mode of operation, a fresh sample is
obtained with each stroke.
Cross-section of the down pipe remains fully intact.
Mounting and installation
For the of the SmartGlide, a mounting
location is selected at which the product is in free
fall. Stowing product or a product column is not permitted.
The supplied TC flange DN80 or DN125 is welded into the wall of the pipe or chute according. The sampler is attached to it with a
triclamp. Optionally, a sample collection system (bottle adaptor or bag holder) is connected to the outlet.
